1. Positional Encoding

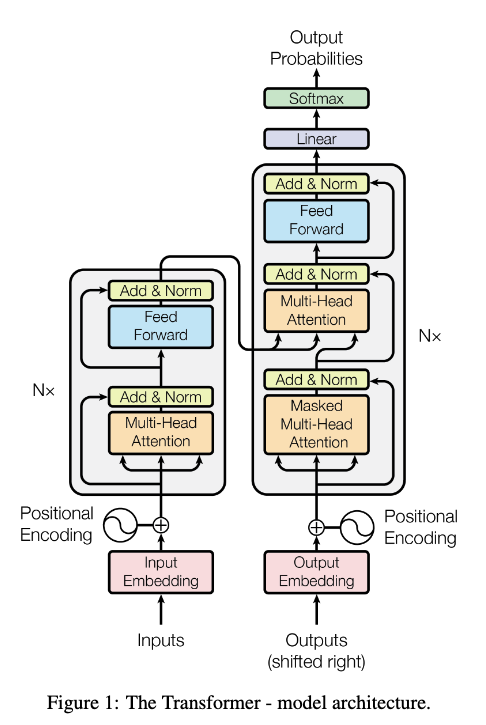

According to the transformer architecture, the positional encoding is used for indexing the order on tokens.

Let the input $x: (\text{B, T, D})$

which:

• $B$: batch
• $T$: timestep / sequence length
• $D$: dimension

1.1 Learned Postional Encoding

import math
import torch
import torch.nn as nn

class LearnedPositionalEncoding(nn.Module):
	def __init__(self, max_len : int, d_model : int):
		super().__init__()
		self.emb = nn.Embedding(max_len, d_model)

	def forward(self, x : torch.tensor):
		# B: Batch size, T: Time steps / sequence length
		B, T, _ = x.shape
		pos = torch.arange(T, device = x.device)
		pos_emb = self.emb(pos) # get pos_emb about pos (T, d_model)
		return x + pos_emb.unsqueeze(0) # fit the dimension and broadcast over the batch

You might be wondering why we use nn.Embedding instead of nn.Linear, since both can conceptually serve as a learned linear mapping. The key difference lies in how they access data under the hood:

• nn.Linear: Requires the input to be a one-hot encoded vector, and performs a full matrix multiplication.
• nn.Embedding: Acts as a simple Lookup Table. It takes an integer index and directly retrieves the corresponding vector from memory.

Since position IDs are just discrete integers ($0, 1, 2, …$), using one-hot encoding followed by matrix multiplication (nn.Linear) would be highly inefficient and wasteful. nn.Embedding provides a much faster and memory-efficient way to grab the specific positional vector we need.

💡 What does device=x.device mean?

In PyTorch, data can reside on either the CPU or a specific GPU. Operations can only be performed if all involved tensors are on the same device. By passing device=x.device, we ensure that our newly created position indices (pos) are generated on the exact same hardware accelerator where our input tensor x currently lives, preventing device mismatch errors.

1.2 Sinusoidal Postional Encoding

This method was proposed in the Attention Is All You Need paper.

class SinusoidalPositionalEncoding(nn.Module):
	def __init__(self, max_len : int, d_model : int):
		super().__init__()
		pe = torch.zeros(max_len, d_model)
		pos = torch.arange(0, max_len, dtype = torch.float).unsqueeze(1)
		denom = torch.exp((-math.log(10000.0) / d_model) * torch.arange(0, d_model, 2).float())
		pe[:, 0::2] = torch.sin(pos * denom)
		pe[:, 1::2] = torch.cos(pos * denom)
		self.register_buffer('pe', pe) # register pe at buffer for some reasons

	def forward(self, x : torch.tensor):
	    B, T, _ = x.shape
	    return x + self.pe[:T].unsqueeze(0)

💡 Why implement the denominator using $\log$ and $\exp$?

The formula for the denominator in the paper is $10000^{2i / d_{model}}$. Directly calculating $10000^{x}$ for large exponents can cause severe floating-point precision issues (overflow/underflow) in computers.
By utilizing the mathematical property $x = \exp(\log(x))$, we can rewrite $10000^{2i / d} $ as: $\exp(\frac{2i}{d} \cdot \log(10000))$. This computes the same exact values but remains highly numerically stable during tensor operations.

1.2.1 Deep Dive Into Sinusoidal Positional Encoding

Look at the image above and you’ll notice it uses $\sin$ and $\cos$ functions. But why exactly these functions?

Sinusoidal positional encoding identifies a token’s position by mapping it to a unique pattern of sine and cosine values across multiple dimensions.

Think of it like the hands of a clock:

• The first few dimensions (high frequency) move very fast, like the second hand, capturing exact local positions.
• The later dimensions (low frequency) move very slowly, like the hour hand, giving a sense of the broader, long-range position in the sequence.

Because each dimension pulses at a different frequency, the overall combination acts as a distinct, continuous signature for that specific position. This continuous nature is crucial because it allows the model to easily calculate relative distances between tokens. Because of trigonometric properties (like $\sin(\alpha + \beta)$), a positional offset can be computed as a simple linear transformation, making it incredibly easy for the attention mechanism to learn relative positions.

The constant $10000$ is simply a design choice (hyperparameter) that sets the maximum wavelength, ensuring the “hour hand” doesn’t complete a full cycle even for very long sequences.

The term $2i / d_{model}$ spaces these frequencies smoothly on a logarithmic scale, ensuring the model captures positional patterns at various resolutions from short-range to long-range.
