1. Causal Mask

import torch

def causal_mask(T: int, device = None):
	"""Returns a bool mask where True means *masked* (disallowed).
	Shape: (1, 1, T, T) suitable for broadcasting with (B, heads, T, T).
	"""
	mask = torch.triu(torch.ones((T,T), dtype = torch.bool, device = device), diagonal = 1)
	return mask.view(1, 1, T, T)

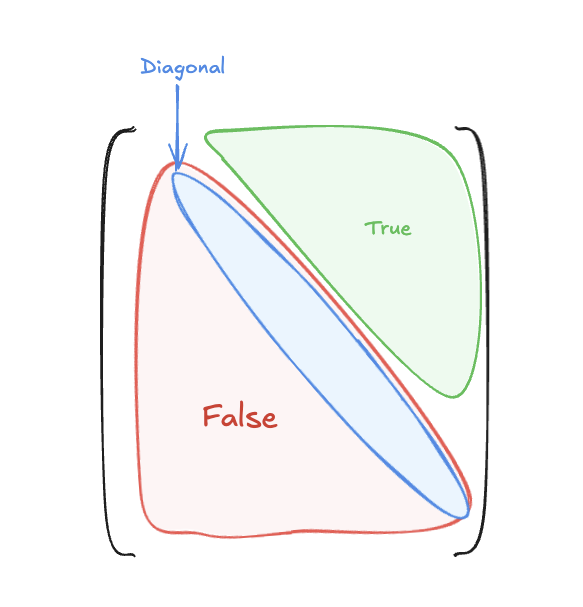

• torch.triu stands for ‘triangle upper’.
• diagonal = 1 sets all elements above the main diagonal to True to mask future tokens.

Why use a Causal Mask? In auto-regressive models (like GPT), predicting the next word relies only on the past and present tokens. The causal mask ensures that the model cannot look ahead or cheat by giving attention to future tokens that haven’t been generated yet.

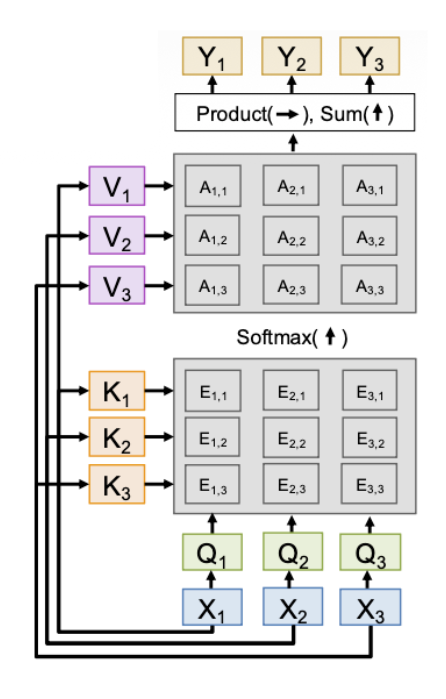

2. What Is Single Head Self Attention?

Self-attention allows the model to weigh the importance of different tokens in a sequence relative to a specific token. It achieves this using three learned vectors for each token:

• Query (Q): “What kind of information am I looking for?” (The current token asking questions to context)
• Key (K): “What kind of information do I contain?” (Other tokens holding up their identity name tags)
• Value (V): “Here is my actual content.” (The underlying representation or meaning of the token)

3. The Attention Formula

Step-by-step breakdown:

1. $QK^T$ (Calculate Scores): Take the dot product between the Query of the current token and the Keys of all other tokens. A high dot product means the Key closely matches what the Query is looking for (high relevance).
2. $\frac{1}{\sqrt{d_k}}$ (Scale): If the dimension $d_k$ is large, the dot products can grow extremely large or small. This causes the gradients of the Softmax function to vanish (become flat). Dividing by $\sqrt{d_k}$ keeps the variance stable.
3. $softmax(\dots)$ (Get Weights): Converts the raw scores into probabilities (Attention Weights) that sum to 1.
4. $\times V$ (Get Context): Multiplies the Attention Weights by the Value vectors. The result is a weighted sum representing the newly contextualized token.

4. Code Implementation

import math
import torch
import torch.nn as nn
import torch.nn.functional as F
# from attn_mask import causal_mask

class SingleHeadSelfAttention(nn.Module):
	"""1.3 Single-head attention (explicit shapes).

	Dimensions summary (single head):
		X: (B, T, d_model)
		q, k, v: (B, T, d_k)
		scores: (B, T, T)
		Weights: (B, T, T)
		Output: (B, T, d_k)
	"""
	def __init__(self, d_model: int, d_k: int, dropout: float = 0.0, trace_shapes: bool = False):
		super().__init__()
		self.q = nn.Linear(d_model, d_k, bias=False)
		self.k = nn.Linear(d_model, d_k, bias=False)
		self.v = nn.Linear(d_model, d_k, bias=False)
		self.dropout = nn.Dropout(dropout)
		self.trace_shapes = trace_shapes

	def forward(self, x: torch.Tensor): # x: (B, T, d_model)
		B, T, _ = x.shape
		q = self.q(x) # (B,T,d_k)
		k = self.k(x) # (B,T,d_k)
		v = self.v(x) # (B,T,d_k)
		if self.trace_shapes:
			print(f"q {q.shape} k {k.shape} v {v.shape}")

		scale = 1.0 / math.sqrt(q.size(-1))
		attn = torch.matmul(q, k.transpose(-2, -1)) * scale # (B,T,T)
		mask = causal_mask(T, device=x.device)
		attn = attn.masked_fill(mask.squeeze(1), float('-inf'))
		w = F.softmax(attn, dim=-1)
		w = self.dropout(w)
		out = torch.matmul(w, v) # (B,T,d_k)

		if self.trace_shapes:
			print(f"weights {w.shape} out {out.shape}")
		return out, w

Reference :

• LLMs from Scratch – Practical Engineering from Base Model to PPO RLHF
• Stanford CS231N Spring 2025 Lecture 8: Attention and Transformers
