1. What Is Multi Head Self Attention?

Multi-head self-attention is an extension of single-head self-attention.

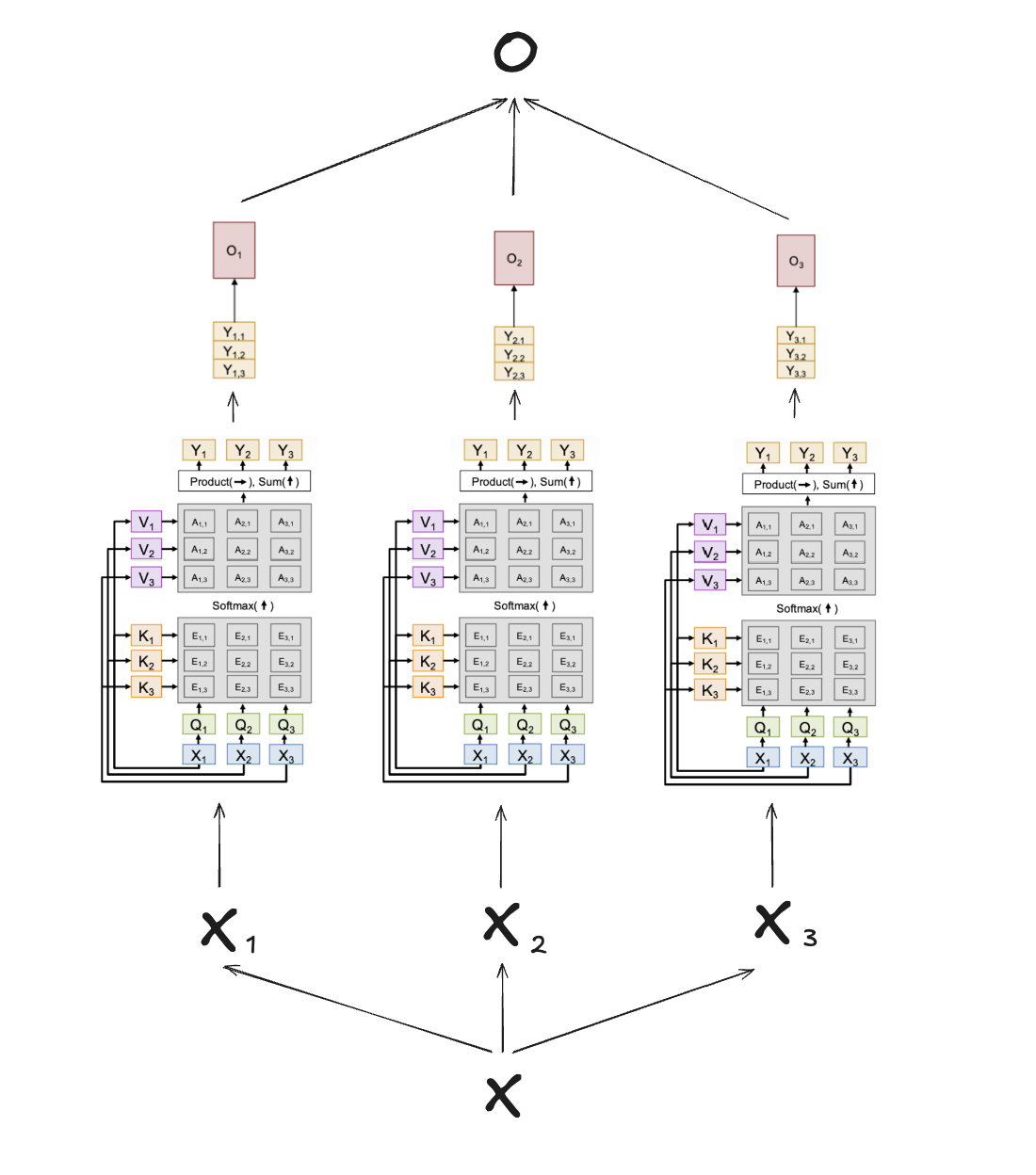

Instead of performing a single attention operation on the whole dimension, we project the queries ($Q$), keys ($K$), and values ($V$) into $n_{head}$ different representation subspaces. We then divide the feature dimension $D_{model}$ into $n_{head}$ pieces, and perform self-attention independently on each subspace.

2. Why Multi Head?

There is a fundamental question:

“Why is multi-head attention needed instead of just one large self-attention head?”

• Capturing Different Representation Subspaces: By separating the representation into $n_{head}$ distinct heads, each head can learn to focus on different types of relationships between tokens. For example, one head might attend to grammatical structures (like subject-verb relationships), another might focus on semantic meaning, and another on positional relevance.

• Preventing Meaning Mixing: If we just use one large attention head, the attention distribution (softmax weights) will be forced to average out all these different relationships into a single weighted sum. This mixes the meanings of the tokens $\rightarrow$ resulting in a lower resolution of information. Multi-head enables multiple simultaneous attention distributions without this dilution.

3. Mathematical Formulation

In Multi-Head Self-Attention, the operations can be summarized as:

\(\text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, \dots, \text{head}_h) W^O\) \(\text{where } \text{head}_i = \text{Attention}(Q W_i^Q, K W_i^K, V W_i^V)\)

• $W_i^Q, W_i^K, W_i^V \in \mathbb{R}^{D_{model} \times D_{head}}$ are the projection matrices for head $i$.
• $W^O \in \mathbb{R}^{D_{model} \times D_{model}}$ is the final output projection matrix.

4. Code Implementation

# from attn_mask import causal_mask
import math
import torch
import torch.nn as nn
import torch.nn.functional as F

class MultiHeadSelfAttention(nn.Module):
	"""1.4 Multi-head attention with explicit shape tracing.

	Dimensions (before masking):
		x: (B, T, d_model)
		qkv: (B, T, 3*d_model)
		view→ (B, T, 3, n_head, d_head) where d_head = d_model // n_head
		split→ q,k,v each (B, T, n_head, d_head)
		swap→ (B, n_head, T, d_head)
		scores: (B, n_head, T, T) = q @ k^T / sqrt(d_head)
		weights:(B, n_head, T, T) = softmax(scores)
		ctx: (B, n_head, T, d_head) = weights @ v
		merge: (B, T, n_head*d_head) = (B, T, d_model)
	"""
	def __init__(self, n_head: int, d_model: int, dropout: float = 0.0, trace_shapes: bool = True):
		super().__init__()
		assert d_model % n_head == 0, "d_model must be divisible by n_head"
		self.n_head = n_head
		self.d_model = d_model
		self.d_head = d_model // n_head
		self.qkv = nn.Linear(d_model, 3 * d_model, bias = False)
		self.proj = nn.Linear(d_model, d_model, bias = False)
		self.dropout = nn.Dropout(dropout)
		self.trace_shapes = trace_shapes

	def forward(self, x: torch.tensor):
		B, T, D = x.shape
		qkv = self.qkv(x)
		qkv = qkv.view(B, T, 3, self.n_head, self.d_head)
		if self.trace_shapes:
			print("qkv view:", qkv.shape)

		q, k, v = qkv.unbind(dim = 2) # (B, T, head, dim)
		q = q.transpose(1, 2) # (B, head, T, dim)
		k = k.transpose(1, 2)
		v = v.transpose(1, 2)

		if self.trace_shapes:
			print("q:", q.shape, "k:", k.shape, "v:", v.shape)

		scale = 1.0 / math.sqrt(k.shape[-1])
		attn = torch.matmul(q, k.transpose(-2, -1)) * scale # (B,heads,T,T)

        # We assume causal_mask is defined separately
        # mask = causal_mask(T, device = x.device)
		# attn = attn.masked_fill(mask, float('-inf'))
		w = F.softmax(attn, dim = -1)
		w = self.dropout(w)
		ctx = torch.matmul(w, v) # (B,heads,T,dim)

		if self.trace_shapes:
			print("weights:", w.shape, "ctx:", ctx.shape)

		out = ctx.transpose(1, 2).contiguous().view(B, T, D) # (B,T,d_model)
		out = self.proj(out)

		if self.trace_shapes:
			print("out:", out.shape)
		return out, w

Key Implementation Details:

• Fused QKV Projection: You might notice that q, k, v are derived from a single nn.Linear(d_model, 3 * d_model) rather than three separate layers. This is treated as one combined tensor primarily for the advantage of computation, allowing better GPU utilization through parallel matrix multiplication rather than being a theoretical necessity.
• Final Projection Layer (self.proj): After multiplying the weights and values, the outputs of all heads are concatenated together (via .view(B, T, D)) and passed through a final linear layer self.proj. This allows the model to mix the features gathered from the independent heads back together.
